Shandong HengdingSheng Steel Co., Ltd. is a professional carbon steel pipe manufacturer with ISO CE certificate and a large factory with a productivity of 500,000 tons per month. We supply from wall thickness 0.5-300mm, including seamless carbon steel pipe and welded carbon steel pipe. Custom sizes available. We have large stocks for fast delivery, and provide free samples and customized services. The main markets are distributed in Europe, North America, South America, Africa, Southeast Asia and Oceania. The company has established stable cooperative relations with customers in more than 100 countries and regions.

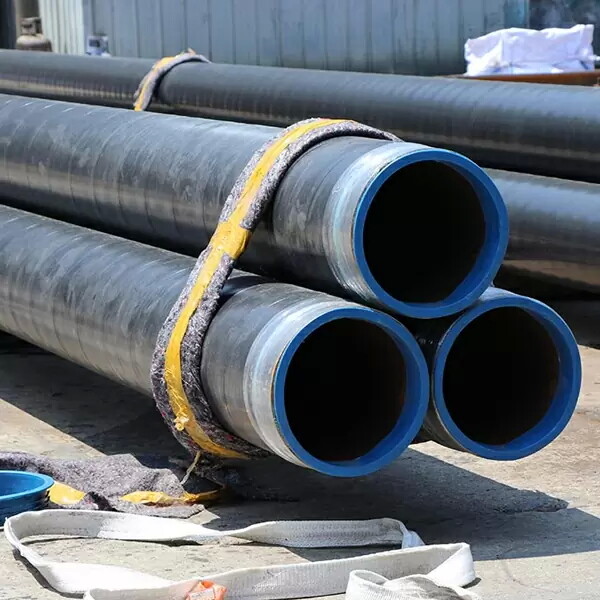

Pipe Type:PE Coated Pipe, 2PE Coated Pipe, 3PE Coated Pipe

Application:Used for for natural gas, petroleum, water & sewage, and pipe systems

Specification:OD: 219mm~2020mm

                     WT: 5mm~25mm

                     LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr

Coating Standard:DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc.

Pipe Type: Submerged Arc Welded (LSAW/SSAW), Electrci Resistance Welded

Ends:Plain,Beveled, Thread With Couplings Or Sockets; Plastic Caps And Steel Rings Can Be Provided if possible

Surface:Two Layer Polyethylene Coating (2mm~4.5mm)

Packing:Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

3 PE coating steel pipe can be also used in urban fuel gas piping system, storage tanks and groove piping system, protecting pipe in electricity and communication industries and water piping systems.

3PE anti-corrosion pipe three-tier structure:
the first layer of epoxy powder (FBE> 100um), the second adhesive (AD) 170-250um, the third layer of polyethylene (PE) 2.5-3.7mm.
Three of the integration, and steel pipe with a good solid coating. Diameter of Φ159-Φ1220.

2PE pipe anti-corrosion two-story structure, the first layer adhesive (AD), the second layer of polyethylene (PE), two kinds of integration.

Coating Material: Epoxy Powder, Adhesion, Polyethylene Or Polypropylene, Cement Inside

3PE anti-corrosion consists of three layers of structure
-The first layer of epoxy powder is greater than 100Um
-The second layer of adhesive, (AD) 170-250um.
-The third layer of polyethylene (PE) 1.8-3.7mm.

2PE anti-corrosion (two-layer polyethylene) structure
-The first layer of adhesive, (AD) 170-250um.
-The second layer of polyethylene (PE) 1.8-3.7mm

3PE Coating Steel Pipe/2PE Coating Steel Pipe:
-Coating Material: Epoxy Powder, Adhesion, Polyethylene Or Polypropylene, Cement Inside
-Standard: API 5L (PSL1, PSL2); GB/T 9711.1;
-Grade: Gr. B, X42, X46, X52, X60, X65, X70, X80; Gr. C;
-The third party, SGS, BV, can be accepted.

2PP PRESERVATION:

PP anti-corrosion pipe two-story structure: the first layer adhesive (AD), the second layer of polypropylene (PP), two kinds of integration, three layers thick with the same PP.

3PP PRESERVATION:

PP three-tier structure of anti-corrosion pipeline:

-The first layer of epoxy powder (FBE50 – 100um),

-The second adhesive (AD) 250 – 400um,

-The third layer of polypropylene (PP) 1.4 – 4.0mm.

Three of the integration, and steel pipe with a good solid coating, Coating temperature up to 110 degrees.

-Diameter of Φ159 – Φ1440
