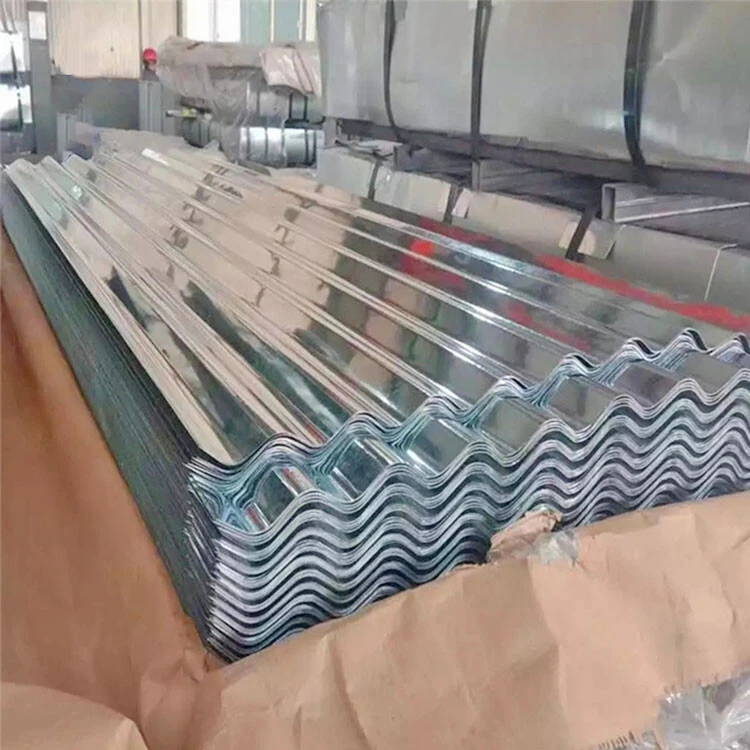

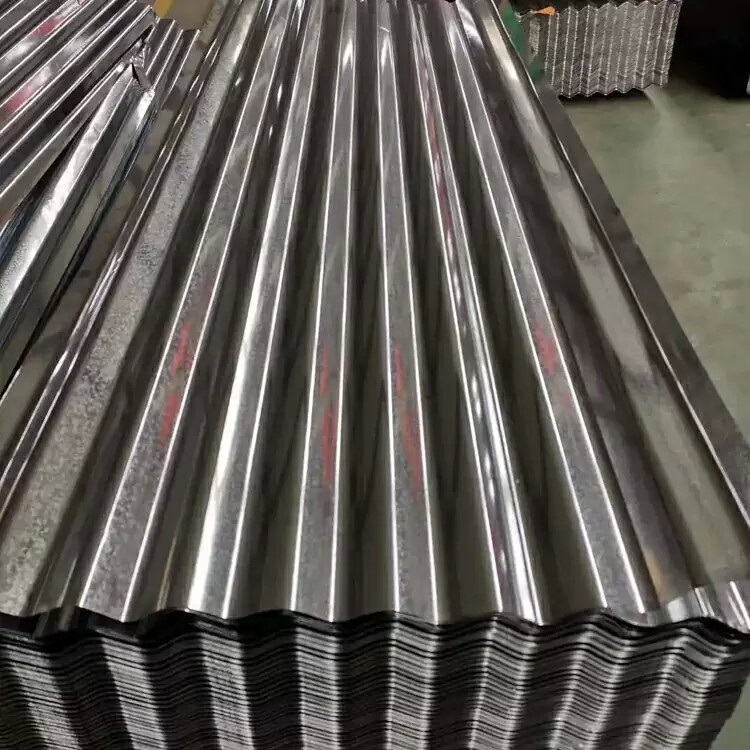

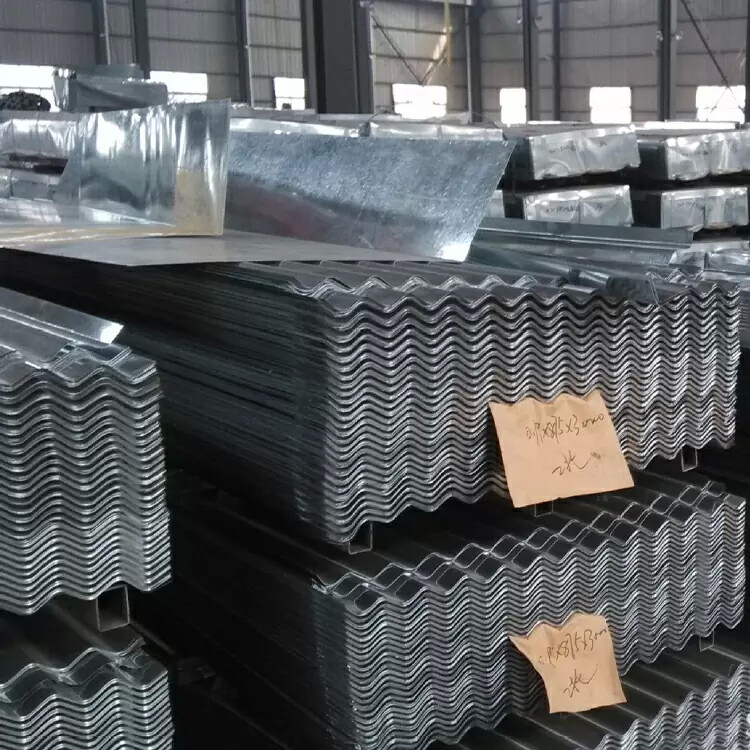

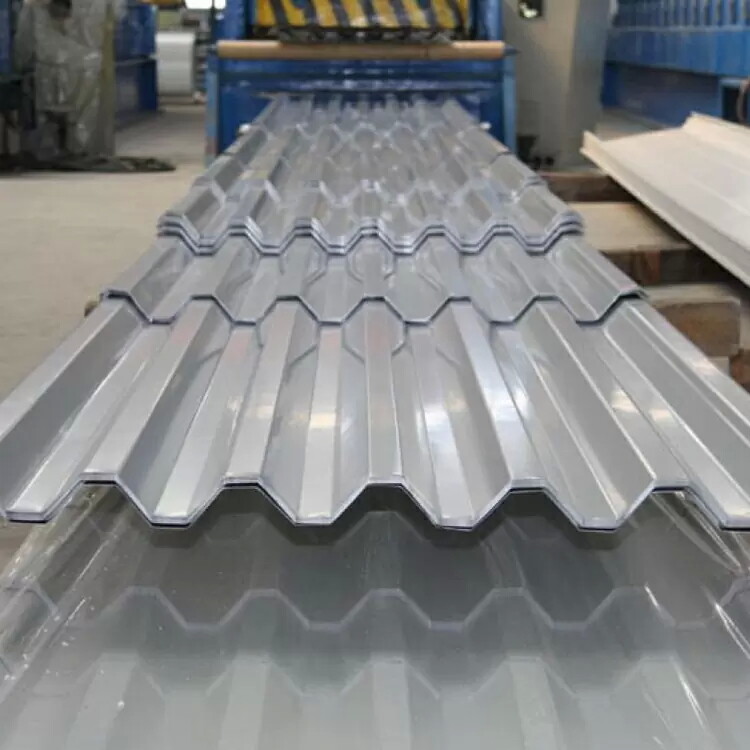

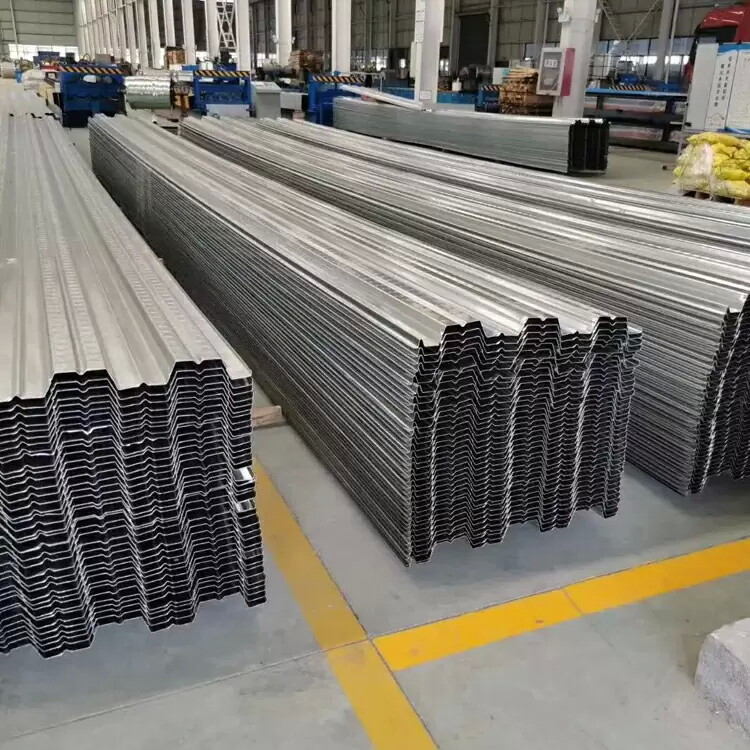

DX54d Galvanized Steel Roofing Sheet
DX54D is a European standard ultra-soft deep-drawn galvanized substrate with a yield strength of ≤180MPa and an elongation of ≥42% (the highest level in the industry), specializing in ultra-extreme curved roofs. The coating is 80-275g/m², the plate thickness is 0.25-0.5mm, and it can achieve 0.5t (plate thickness) level extreme bending (conventional plates require ≥2t), and the forming fracture rate is close to zero. It is suitable for the special-shaped streamlined roofs of art buildings such as museums and opera houses. Its processing ductility is 50% higher than that of DX51D, and it can complete seamless curved surface splicing with laser welding. It is a cutting-edge material that takes into account both anti-corrosion and freedom of modeling in parametric design buildings.
+86 19163584547
+86 19163584547
+86 19163584547
info@hds-steels.com
Contact Us

Product Description

镀锌 拷贝


Product NameDX54d Galvanized Steel Roofing Sheet
Stock Thickness0.12mm to 3mm
Width700mm to 1,250mm
SpangleZero spangles, Small spangles, Regular spangles, Big spangles
Zinc Layer Thickness30 g/m2-275 g/m2
MaterialDX51D + Z, DX52D + Z, DX53D + Z, DX54D + Z, DC51D + Z, DC52D + Z; SGCC; S350GD, etc.
StandardAISI, ASTM, BS, DIN, GB, JIS
CertificatesSGS, BV, ISO 9001
PackagingStandard export package or as per your requirements
Delivery Time5-25 working days after payment, mainly depending on order quantity


ed11f580-3c07-4823-8fce-39578f619155

镀锌花 拷贝

Product Show

详情标题1-产品详情1


Due to the different treatment methods in the plating process, the surface state of the galvanized plate is also different, such as ordinary zinc flowers, fine zinc flowers, flat zinc flowers, zinc flowers and phosphating surface.


1-屋顶板-产品展示 拷贝



详情标题1-产品详情2


Hot dip galvanized steel plate. The sheet steel is immersed in the melted zinc tank so that the surface is adhered to a layer of zinc sheet steel. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped in the plating tank with melted zinc to make galvanized steel plate.

Alloyed galvanized steel plate. This steel plate is also made by hot dipping, but after the tank is out, it is immediately heated to about 500 ° C to generate an alloy film of zinc and iron. The galvanized sheet has good adhesion and weldability of coating.

Electric galvanized steel plate. The galvanized steel plate made by electroplating has good workability. However, the coating is thin and the corrosion resistance is not as good as that of hot-dip galvanized sheet.

Single-sided plating and double-sided differential galvanized steel plate. Single-sided galvanized steel, that is, products that are only galvanized on one side. It has better adaptability than double-sided galvanized sheet in welding, coating, anti-rust treatment, processing and so on. In order to overcome the shortcomings of uncoated zinc on one side, there is a galvanized sheet coated with a thin layer of zinc on the other side, that is, double-sided differential galvanized sheet;

Alloy, composite galvanized steel plate. It is a steel plate made of zinc and other metals such as aluminum, lead, zinc, and even composite plating. This steel plate not only has excellent anti-rust performance, but also has good coating performance.


2-屋顶板-生产线 拷贝



详情标题1-产品详情3


In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.


3-镀锌板-检测 拷贝



详情标题1-产品详情4


Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4-屋顶板-包装 拷贝
