Product Description

镀锌 拷贝


Product NameS280GD+Z Galvanized Tile
MaterialGalvanized sheet, Aluzinc sheet, Color coated sheet
Thickness0.14-1.0mm
Width600mm to 1100mm
Length1000-6000mm up to client option.
GradeS220/250/280/320/350GD+Z
SpangleZero, Minimum, Regular, Big
Packing Detailswaterproof paper+edge protector or iron packing+bundling , or as per customers request.
ApplicationRoofing sheet is used as the steel structure housing panel, a mobile home panels etc.


1. GI Roofing Steel Sheet introduction
It is a plain carbon steel sheet coated in a galvanizing process that applies a barrier of zinc to insulate it from the elements. Most of the corrugated roofing and siding products seen todayand for many years past are made with a galvanized finish


2. GI Roofing Steel Sheet application scope
It is most commonly used for commercial, agricultural, and industrial purposes, however, it is now also being recognized as an excellent form of residential roofing

3. GI Roofing Steel Sheet advantages compared with normal one
A normal steel sheet will rust almost immediately, but galvanizing will protect the steel. This galvanized, eltro-coated, hot-dipped process produces a silvery look or spangled finish. As
a standard, several of our industrial metal siding, metal roofing, metal decking, corrugated metal panels and accessories are made in galvanized steel

4. GI Roofing Steel Sheet technical processing
Hot rolled steel coil -->Cold rolled- >hot dipped galvanized/ galvalume- > corrugated-->packing


ed11f580-3c07-4823-8fce-39578f619155

镀锌花 拷贝

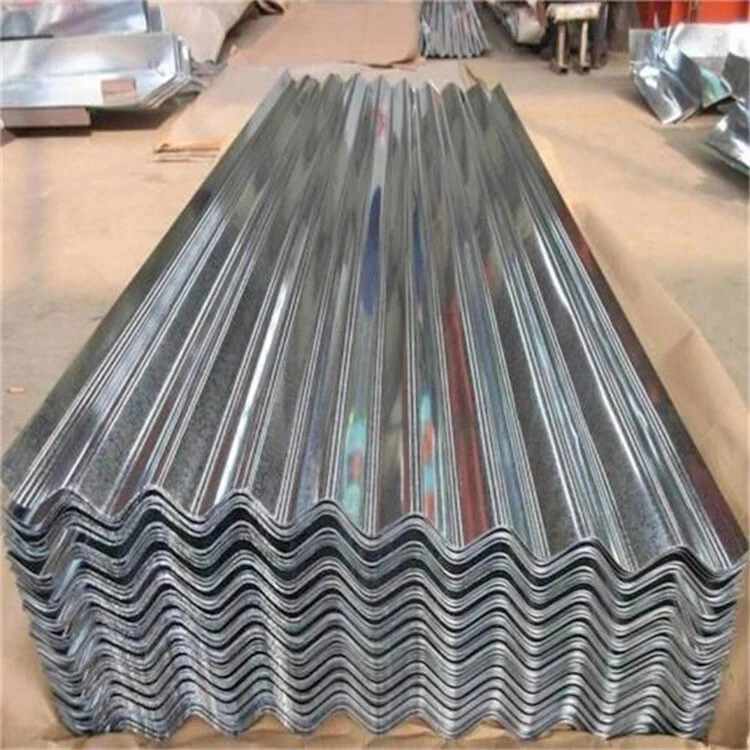

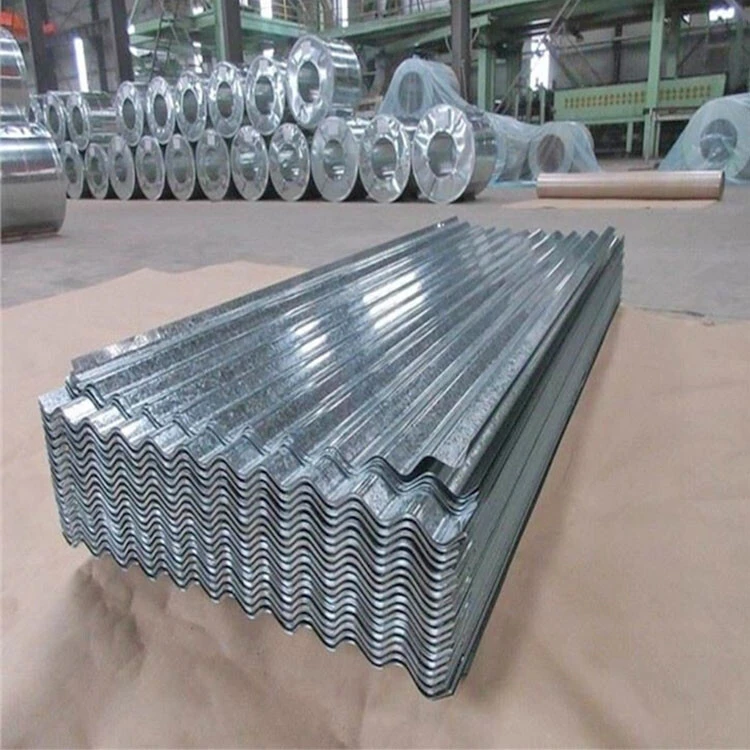

Product Show

详情标题1-产品详情1


Due to the different treatment methods in the plating process, the surface state of the galvanized plate is also different, such as ordinary zinc flowers, fine zinc flowers, flat zinc flowers, zinc flowers and phosphating surface.


1-屋顶板-产品展示 拷贝



详情标题1-产品详情2


Hot dip galvanized steel plate. The sheet steel is immersed in the melted zinc tank so that the surface is adhered to a layer of zinc sheet steel. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously dipped in the plating tank with melted zinc to make galvanized steel plate.

Alloyed galvanized steel plate. This steel plate is also made by hot dipping, but after the tank is out, it is immediately heated to about 500 ° C to generate an alloy film of zinc and iron. The galvanized sheet has good adhesion and weldability of coating.

Electric galvanized steel plate. The galvanized steel plate made by electroplating has good workability. However, the coating is thin and the corrosion resistance is not as good as that of hot-dip galvanized sheet.

Single-sided plating and double-sided differential galvanized steel plate. Single-sided galvanized steel, that is, products that are only galvanized on one side. It has better adaptability than double-sided galvanized sheet in welding, coating, anti-rust treatment, processing and so on. In order to overcome the shortcomings of uncoated zinc on one side, there is a galvanized sheet coated with a thin layer of zinc on the other side, that is, double-sided differential galvanized sheet;

Alloy, composite galvanized steel plate. It is a steel plate made of zinc and other metals such as aluminum, lead, zinc, and even composite plating. This steel plate not only has excellent anti-rust performance, but also has good coating performance.


2-屋顶板-生产线 拷贝



详情标题1-产品详情3

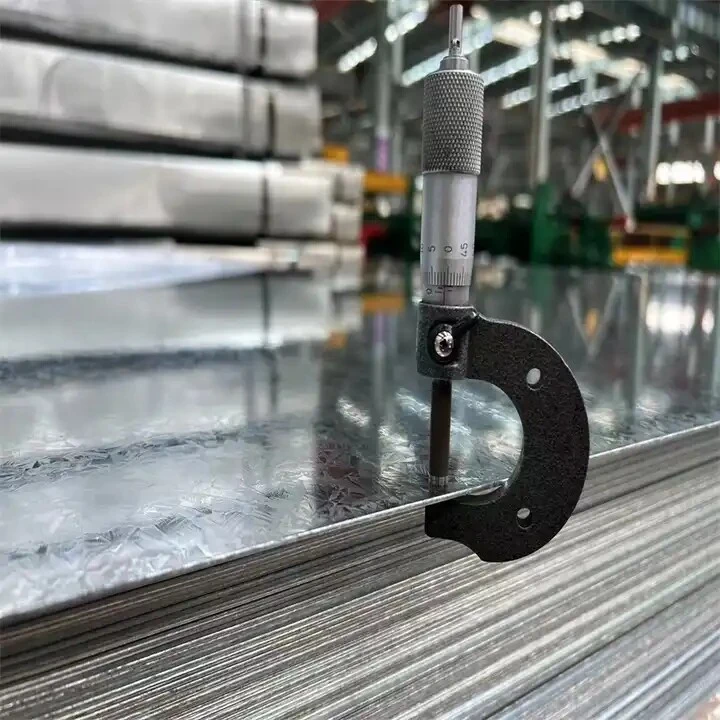

In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.


3-镀锌板-检测 拷贝



详情标题1-产品详情4

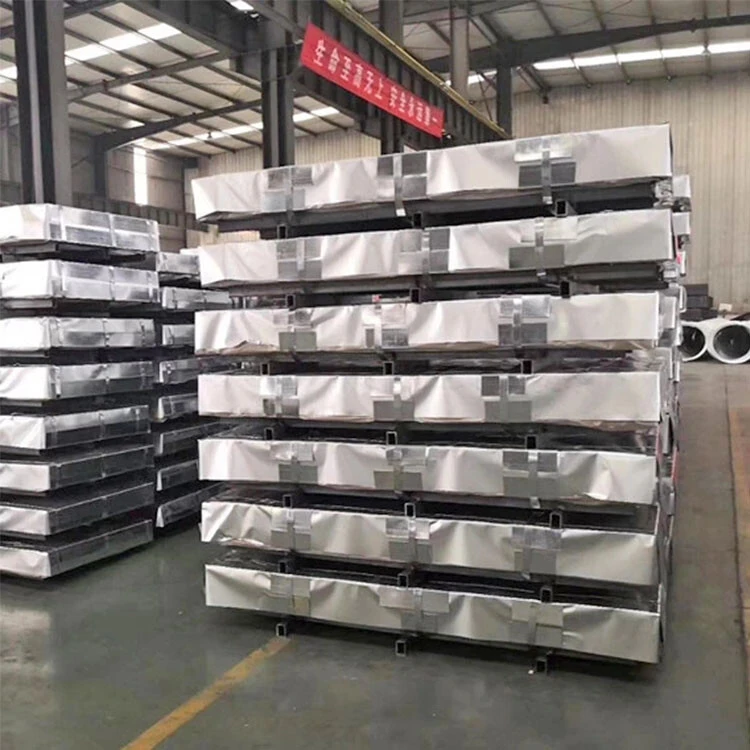

Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4-屋顶板-包装 拷贝
