SS255 Galvalume Steel Coil
Galvalume steel is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.
+86 19163584547
+86 19163584547
+86 19163584547
info@hds-steels.com
Contact Us

Product Description

镀锌 拷贝


SS255 Galvalume Steel Coil is also called Aluminum-Zinc Alloy Coated Steel, Zincalume steel, aluminized zinc steel (aluzinc steel), SGLC, The galvalume metal is composed of 55% aluminium, 43.4% zinc and 1.6% silicon solidified at 600 ~C. Its whole structure consists of aluminium-iron-silicon-zinc, forming a compact quaternary crystal alloy. The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet is up to 25a, and its heat resistance is good. It can be used in high temperature environment at 315 C. The adhesion between coating and paint film is good, and it has good processing performance. It can be punched, sheared and welded. The surface conductivity is very good.


Product NameSS255 Galvalume Steel Coil
Steel GradeDC51D+AZ, DC52D+AZ, DC54D+AZ, DC53D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S450GD+AZ, S550GD+AZ
TypeCoil/Sheet/Plate/Strip
Thickness0.12-6.00mm,or customer's requirement
Width600mm-1500mm,according to customer's requirement
Type of CoatingHot Dipped Galvalume Steel
Al-Zn coating20-275g/m2
Surface TreatmentDRY,OIL,Chromate,Anti-finger print,Gr-free,etc
ID508mm/610mm
Coil Weight3-20metric ton per coil
PackageWater proof paper is inner packing,galvanized steel or coated steel sheet is outer packing, side guard plate,then wrapped by sevensteel belt.or according to customer's requirement
Export marketEurope,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

Product Show

详情标题1-产品详情1

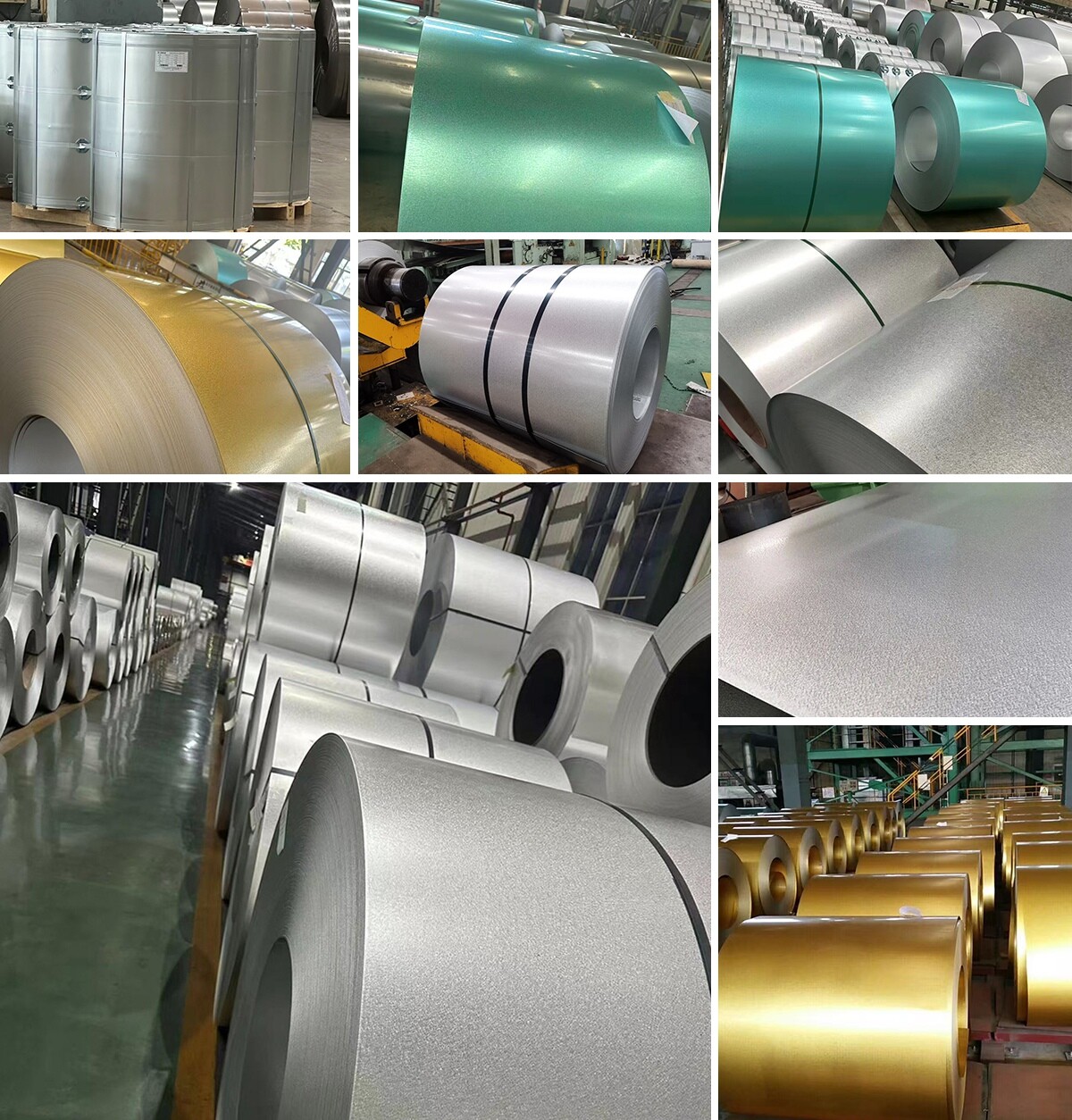

Galvalume Steel Coil is produced through a hot-dip process, coating the base steel with an aluminum-zinc alloy layer (55% aluminum, 43.4% zinc, and 1.6% silicon). It offers exceptional corrosion resistance (withstands over 1,000 hours of salt spray testing, 2-6 times better than regular galvanized steel) and high-temperature resistance (stable for long-term use up to 315°C). Compared to traditional galvanized steel, it achieves the same corrosion protection with 20%-30% thinner coating, while providing superior ductility (supporting 180° bending without cracking), making it ideal for stamping and complex forming processes. This combination ensures both cost efficiency and excellent workability.


1-镀锌卷-产品展示 拷贝



详情标题1-产品详情2

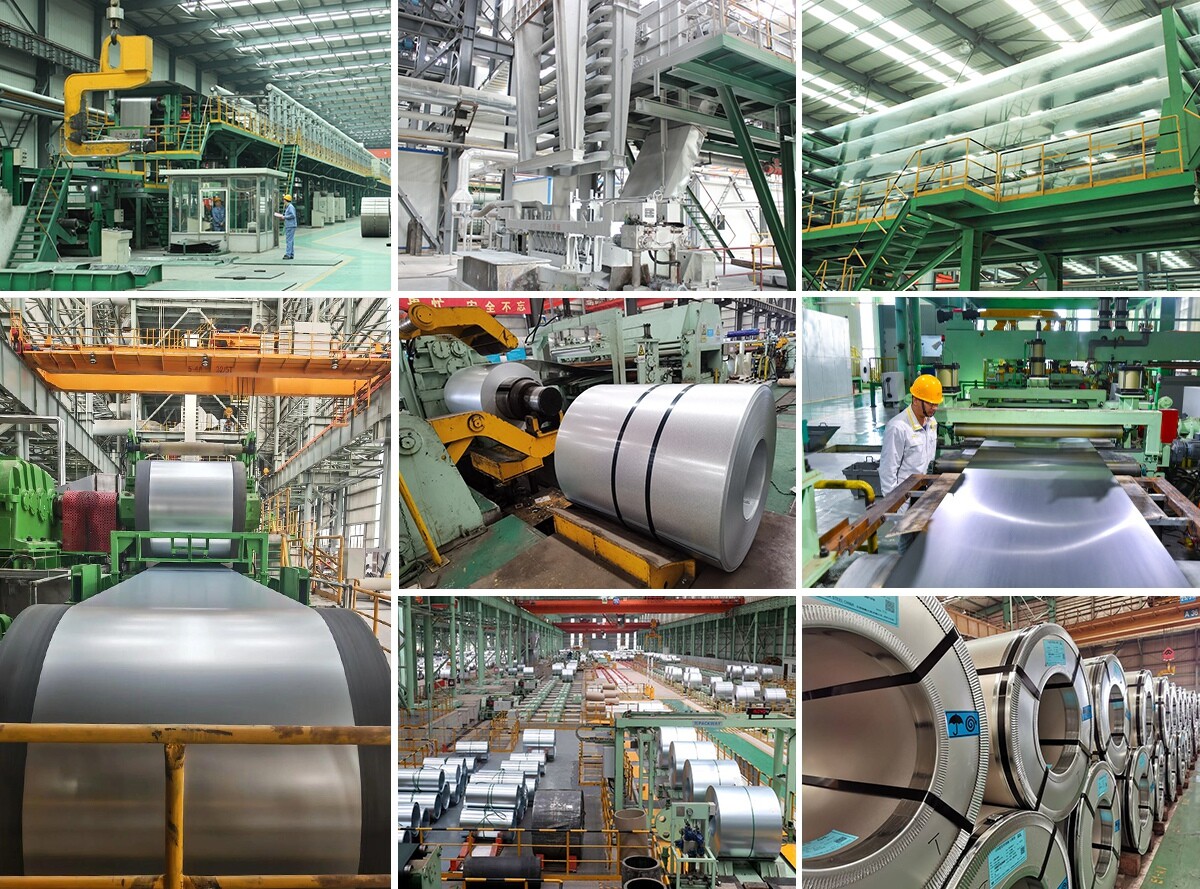

Manufactured using continuous galvanizing lines (CGL) equipped with precision zinc coating control systems (air knife system with ±5g/m² accuracy) and advanced annealing processes (hydrogen atmosphere furnaces ensure formability). Integrated with online thickness monitoring and surface scanners for full-process quality control. Annual production capacity exceeds 500,000 metric tons, supporting custom coil weight, ID/OD specifications.


2-镀锌带-生产线 拷贝



详情标题1-产品详情3


In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.


3-镀锌卷-检测 拷贝



详情标题1-产品详情4


Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4-镀锌卷-包装 拷贝
