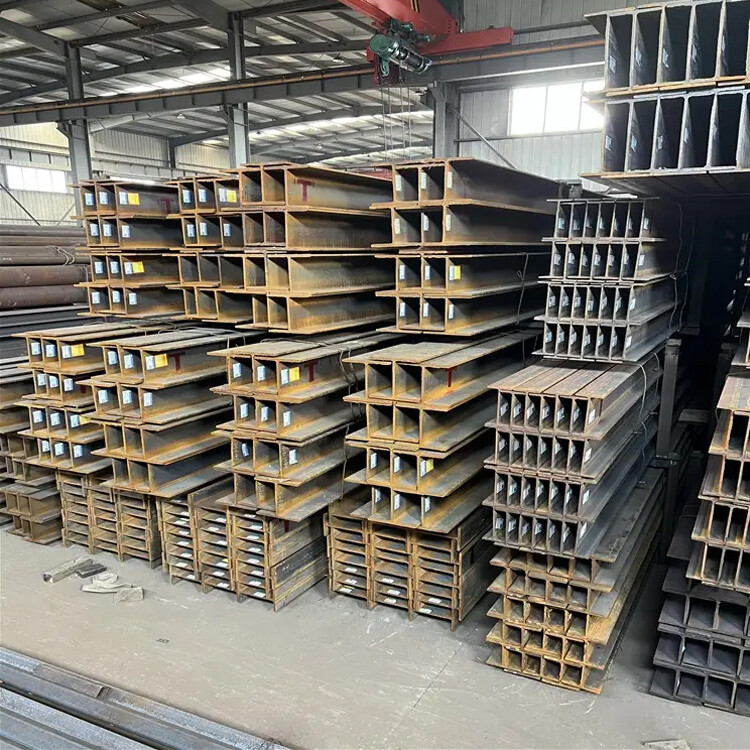

A36 W4*13-W44*355 H Beam
The cross-section shape is similar to the capital Latin letter H. An economic cross-section section, also known as a universal steel beam, a wide-edge (side) I-beam or a parallel-flange I-beam. the cross-section of H-beam usually consists of two parts, the web and the flange plate, which are also known as the waist and the edge.
+86 19163584547
+86 19163584547
+86 19163584547
info@hds-steels.com
Contact Us

Product Description

型材 拷贝


H-beam is an economical and efficient profile with a more optimized cross-sectional area distribution and a more reasonable strength to weight ratio, named after the same section as the English letter "H". Due to the fact that all parts of H-beam are arranged at right angles, H-beam has advantages such as strong bending resistance, simple construction, cost savings, and light structural weight in all directions, and has been widely used.


Product NameASTM A36 W4*13-W44*355 H Beam
GradeQ195,Q215,Q235,Q345,16Mn,ASTMA36,ASTMA572,SS400,SS490,A36,S235JR,S355JR,ST37,ST52,etc
StandardAISI, ASTM, BS, DIN, GB, JIS, EN,etc
Flange Thickness7-24mmmm
Flange Width50-300mm
Web Thickness5-13mm
Web Width100-700mm
Length5.8m,6m,9m,11.8m,12m or as your requirement
SurfacePerforated/galvanized/black/PaintBright, Polished, Turn smooth(Peeled),Brush, Mill,Pickled
TechniqueHot-rolled and High frequency welded
Application1.Industrial structure of the steel structure bearing bracket 2.Underground engineering steel pile and retaining structure
3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships,machinery manufacturing frame structure 6.The train, automobile, tractor beam bracket7.Port of conveyor belt, high speed damper bracket
PackingIn bulk or container,Standard seaworthy packing or as your required

cae4637d-2bb8-4bbf-a24f-58484c74a99a

ed760558-0f4a-42ae-bc3a-ca0a18486684

Product Show

详情标题1-产品详情1

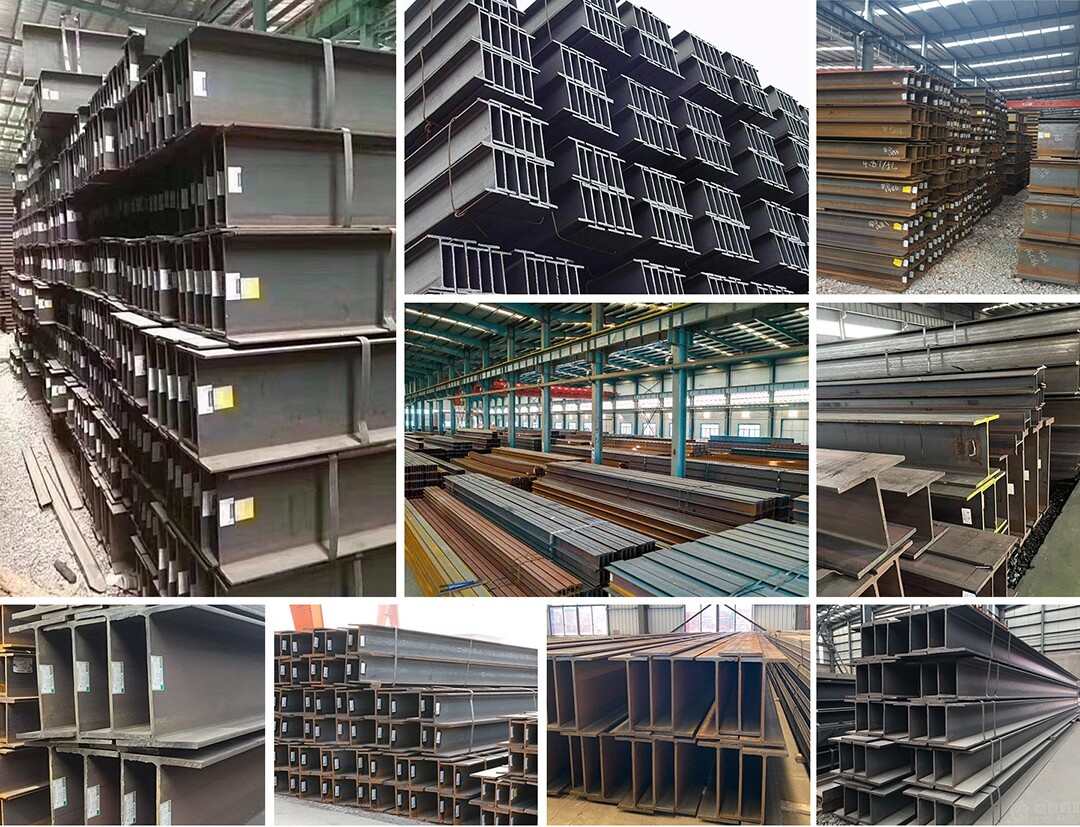

H-beam is an economical and efficient profile with a more optimized cross-sectional area distribution and a more reasonable strength to weight ratio, named after the same section as the English letter "H". Due to the fact that all parts of H-beam are arranged at right angles, H-beam has advantages such as strong bending resistance, simple construction, cost savings, and light structural weight in all directions, and has been widely used.


1-H钢-产品 拷贝



详情标题1-产品详情2

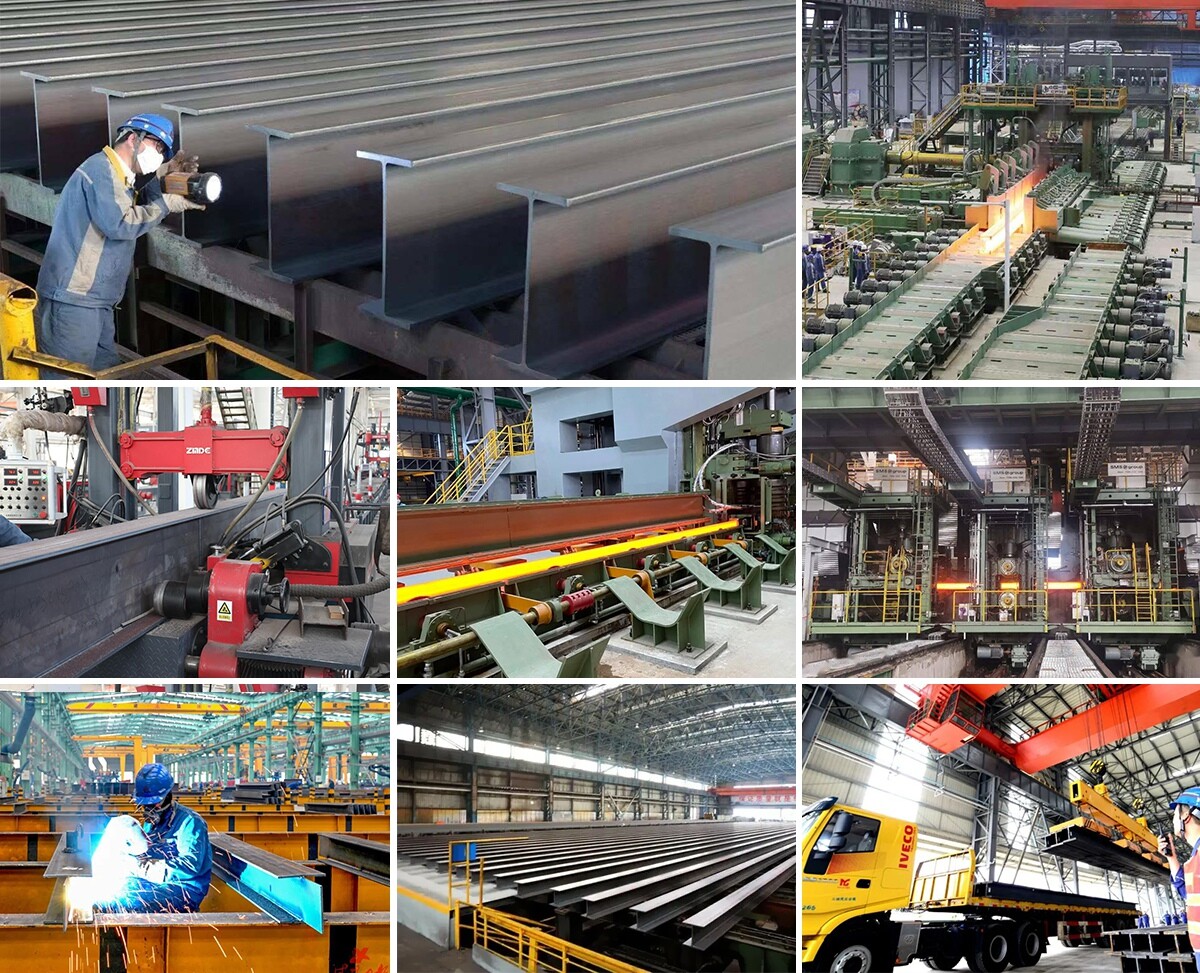

H-shaped steel can be produced by welding or rolling. Welding H-shaped steel is to cut the appropriate thickness of the strip to the appropriate width, and weld the flange and web together in the continuous welding set. H-shaped steel is mainly produced by rolling method. In modern steel rolling production, the universal mill is used to roll H-shaped steel. The web plate of H-shaped steel is rolled between the upper and lower horizontal rolls, and the flange is simultaneously rolled between the side of the horizontal roll and the vertical roll.


2-H钢-生产线 拷贝



详情标题1-产品详情3

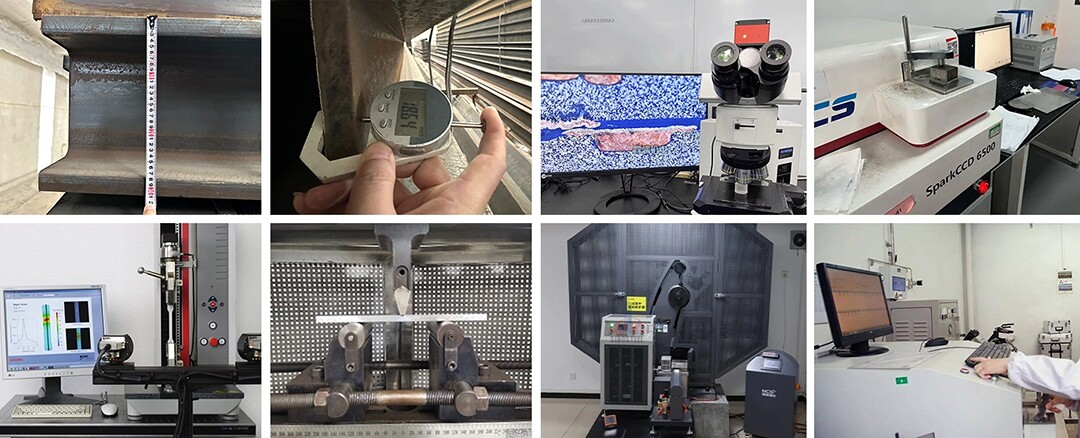

In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.


3-H钢-检测 拷贝



详情标题1-产品详情4

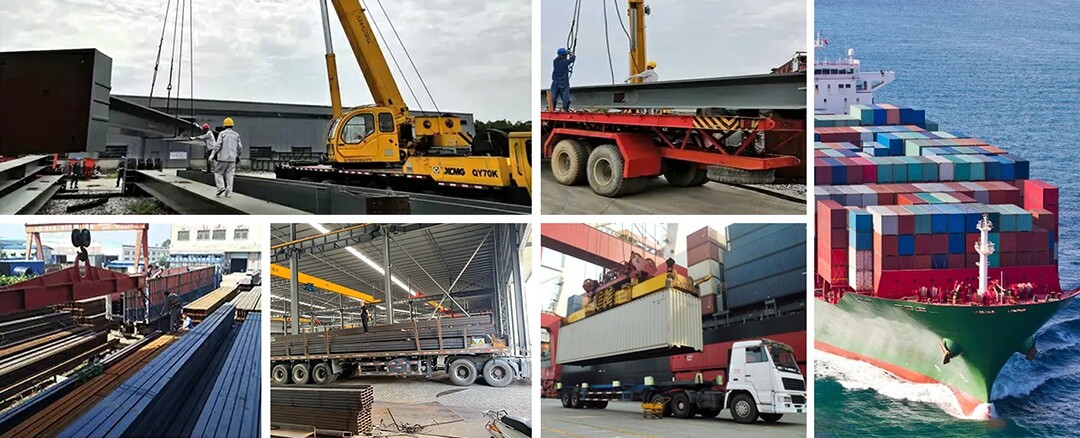

Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4-工字钢-包装 拷贝
