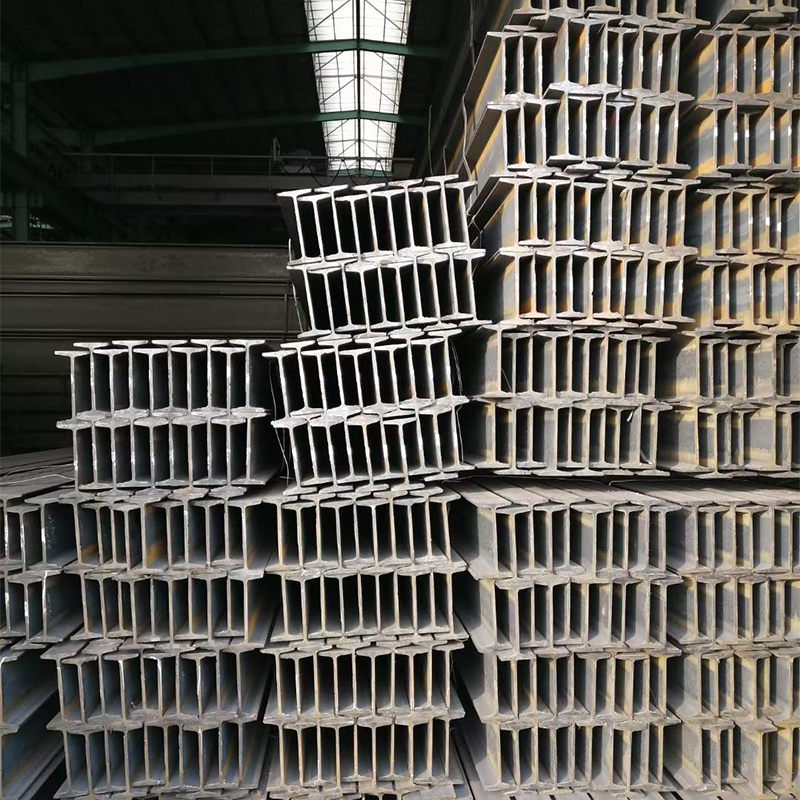

20# I Beam
I - beams are widely used in buildings and other metal structures.
Whether the I-section steel is ordinary or light, because the section size is relatively high and narrow, the moment of inertia of the two main axes of the section is large, so it can only be directly used in the web plane bending members or it is composed of lattice stressed members.
The selection of I-steel in the structural design should be based on its mechanical properties, chemical properties, weldable properties, structural size and other reasonable selection of I-steel for use.
+86 19163584547
+86 19163584547
+86 19163584547
info@hds-steels.com
Contact Us

Product Description

型材 拷贝


I Beam Steel is a shape of structural steel used in buildings and it is also known as H, W, wide, universal beam, or rolled joist. They are designed to play a key role as a support member in structures. These beams have the capacity to withstand various types of loads.


Product Name20# I Beam
TechniqueHot Rolled Cold Rolled
Hight100-630mm
Width68-180mm
Web thickness4.5-17mm
Flange thickness4.5-17mm
Length2000mm, 2440mm, 3000mm, 5800mm, 6000mm,12000mm etc
StandardASTM JIS AISI GB DIN EN
ApplicationShipbuilding,Offshore Platform,Bridges,Boiler,Large Structure Steel,Architecture,Vehicles Components,High Pressure Container
EdgeMill Edge /Slit Edge
MaterialCarbon, Alloy, High-srenght, wear-resistant.AH36,DH36,EH36,AH40,DH40,FH32,FH36,EH40,etc
Export PackingPVC+ waterproof paper + strong sea-worthy wooden package
Container Dimension20ftGP:5898mm(Length)x2352mm(Width)x2393mm(High)   24-26CBM
40ftGP:12032mm(Length)x2352mm(Width)x2393mm(High)  54CBM
40ftHC:12032mm(Length)x2352mm(Width)x2698mm(High)    68CBM

cae4637d-2bb8-4bbf-a24f-58484c74a99a

ed760558-0f4a-42ae-bc3a-ca0a18486684

Product Show

详情标题1-产品详情1


Our hot-rolled I-beams (standard: ASTM A36, EN 10025, JIS G3101) offer superior load-bearing capacity and structural stability. Available in various sizes (e.g., 100×50mm to 600×200mm) and lengths (6m to 12m), suitable for construction, bridges, and industrial frameworks. Custom cutting, drilling, and surface treatment (painted, galvanized) available.


1-工字钢-产品 拷贝



详情标题1-产品详情2


Produced in fully automated rolling mills with precision-controlled temperature and pressure, ensuring uniform flange thickness and web height. Our CNC-controlled cutting and straightening systems guarantee dimensional accuracy (±1mm/m) and straightness tolerance (≤0.15% of length).


2-工字钢-生产线 拷贝



详情标题1-产品详情3


Each I-beam undergoes strict testing: ultrasonic flaw detection, mechanical property tests (yield strength ≥235MPa), and chemical composition analysis (S/P content ≤0.05%). Certified with ISO 9001, CE, and Mill Test Reports (MTR). Random sampling and third-party inspections (SGS/BV) accepted.


3-工字钢-检测 拷贝



详情标题1-产品详情4


Secure packaging with steel strapping and waterproof wrapping to prevent corrosion. Bulk loading or containerized shipping (20GP/40HQ) with optimized space utilization. On-time delivery guaranteed, supported by our logistics partners for FOB/CIF/DAP terms. Loading videos and packing lists provided.


4-工字钢-包装 拷贝
